VGA Input to Composite Video Output Converter

  • Details

  • Recommended

  • Reviews

  • Send

Details

Item Number
VGAVID
Item Condition
New
Was
£22.50
Price
£16.85 (Save 25%) (inc VAT £20.22)

Options

Quantity


  • 3 Way BNC Junction 2 Females, One Male

    3 Way BNC Junction 2 Females, One Male

    BNC Splitter/Joiner 2 Plugs 1 Socket. Gold plated contacts.

    B3TM
    £1.85
  • 10000uF 63V Electrolytic Can Capacitor by Samwha

    10000uF 63V Electrolytic Can Capacitor by Samwha

    10000uF 63V 6.25A Ripple, 85C. SNAP-IN Electrolytic capacitor. 35d x 40h mm. Tolerance 20%. Sanwha HC series

    10000C63
    £3.50
  • L296

    L296

    IC High Currect (4Amps) Switching Regulator 15 pin
    L296
    £4.00
  • UA78S40PC

    UA78S40PC

    IC Switchmode Controller (also know as LM78S40CN) 16DIL
    UA78S40PC
    £2.50
  • 1N5339B

    1N5339B

    Zener Diode 5W 5% Tolerance Wire Ended 5.6V
    1N5339B
    £0.70
  • BNC Female to RCA Male Adaptor

    BNC Female to RCA Male Adaptor

    Adaptor: BNC Socket (Female) to Phono (RCA) Plug

    BPP
    £0.65
  • High Defintion HD 4 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Defintion HD 4 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Definition 1080P HD 4 Channel Real-time AHD DVR Audio on One Channel

    With this latest Quiet Operating Fanless 4 Channel DVR you can record either AHD Cameras (1.0MP up to 2.0MP) at stunning High Definition.
    Will playback all 4 cameras at the same time (split screen or single screen) unlike other inferior HD   Price includes 1TB Hard Drive, upgradable to 6TB.
    Can work on some old analogue cameras

    Features:
    Easy Web & Mobile Set up
    1 Hard Drive: up to 6TB
    1 Audio Channel
    Mobile/Laptop/PC/Smartphone viewing.
    Advanced H.264 High Profile Compression
    Strong processing capacity: Up to 4 Channels AHD 1080N @ 25fps recording and playback synchronously
    Dual stream encoding for high quality recording and streaming on all broadband speeds.
    Built-in IE plug ins, or powerful CMS software included.
    Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view.
    All operations are independent of each other.
    Playback mode Normal , Fast speed Playback, Manual and Single-Frame
    Simple backup via USB stick, external HDD or via network / Internet.
    Alarm alerts via email.
    Auto power recovery, returning to the pre-power-down state
    Complete with Mouse and IR remote

    Technical Data:
    Industrial grade micro controller chip Huawei HIS chipset Hi3521
    Linux Operating system
    Simple to use GUI interface mouse operation
    Channel modes: Display & Screen Displays 1/4
    TV System: PAL
    Image encoding: H.264 (High Profile)
    Live quality: VGA and HDMI - 4x1080P
    Playback Quality: 4x1080N AHD Simultaneously or 1080P IP
    AHD mode: 4x1080N
    Analogue mode: 4x960H
    NVR mode: 4x1080P
    Mixed Mode: (2x1080N AHD + 2x960H Analogue) or (2x1080N AHD + 2x1080P IP)
    Video Motion Detection: Each channel can be set to 192 multiple detection areas.
    Video input: 4 BNC sockets
    Video output: 1 VGA & 1 HDMI
    Audio input: 1 Phono (RCA)
    Audio output: 1 Phono (RCA) & HDMI
    3G, WIFI extension via USB port
    Tour: Yes
    Power Supply: 12V 2A Included
    Dimension 260(W) x 221(D) x 44mm(H)

    Approximate Hard Drive Recording Times

    4 cameras at 1080N real-time

    1TB:             2 weeks
    2TB:             4 weeks
    4TB:             8 weeks
    6TB:             12 weeks

    4 cameras at 960H real-time

    1TB:             4 weeks
    2TB:             8 weeks
    4TB:             16 weeks
    6TB:             24 weeks
    HX4T
    £85.00
  • High Definition HD 8 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Definition HD 8 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Definition 1080P HD 8 Channel Real-time AHD DVR Audio on one Channel.

    Quiet Operating Fanless 8 Channel DVR will record AHD Cameras (1.0MP up to 2.4MP) & IP cameras at stunning High Definition.
    Playback on all 8 cameras at the same time (split screen or single screen)
    Price includes 1TB Hard Drive, upgradable to 6TB
    Can work on some old analogue cameras

    Features:
    Easy Web & Mobile Set up
    1 Hard Drives up to 6TB
    1 Audio input
    Mobile/Laptop/PC/Smartphone viewing.
    Advanced H.264 High Profile Compression
    Strong processing capacity: Up to 8 Channels AHD 1080N @ 25fps recording and playback synchronously
    Dual stream encoding for high quality recording on all broadband speeds.
    Built-in IE plug ins, or powerfull CMS software included.
    Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view.
    All operations are independent of each other.
    Playback mode Normal , Fast speed Playback, Manual and Single-Frame
    Simple backup via USB stick, external HDD or via network / Internet.
    Alarm alerts via email.
    Auto power recovery, returning to the pre-power-down state
    Complete with Mouse and remote

    Technical Data:
    Industrial grade micro controller chip Huawei HIS chipset Hi3521
    Linux Operating system
    Simple to use GUI interface mouse operation
    Channel modes: Display & Screen Displays 1/4/8(3x3 with 1 data screen)
    TV System: PAL
    Image encoding: H.264 (High Profile)
    Live quality: VGA and HDMI - 8x1080P
    Playback Quality: 8x1080N AHD Simultaneously or 1080P IP
    AHD mode: 8x1080N
    Analogue mode: 8x960H
    NVR mode: 8x1080P
    Mixed Mode: Any Paired combination of HD and standard Cameras or (4x1080N AHD + 4x1080P IP)
    Video Motion Detection: Each channel can be set to 192 multiple detection areas.
    Video input: 8 BNC sockets
    Video output: 1 VGA & 1 HDMI
    Audio input: 4 Phono (RCA)
    Audio output: 1 Phono (RCA) & HDMI
    3G, WIFI extension via USB port
    Tour: Yes
    Power Supply: 12V 2A Included
    Dimension 260(W) x 221(D) x 44mm(H)

    Approximate Hard Drive Recording Times

    8 cameras at 1080N real-time

    1TB:             1 weeks
    2TB:             2 weeks
    4TB:             4 weeks
    6TB:             6 weeks

    8 cameras at 960H real-time

    1TB:             2 weeks
    2TB:             4 weeks
    4TB:             8 weeks
    6TB:             12 weeks
    HX8T
    £105.00
  • High Definition HD 16 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Definition HD 16 Channel 1080P DVR With Easy Mobile Viewing & Cloud Technology

    High Definition 1080P HD 16 Channel Real-time AHD DVR with Audio on 2 Channels

    You can record all AHD Cameras (1.0MP up to 2.4MP) as well as IP cameras at stunning High Definition.
    Playback all 16 cameras at the same time (split screen or single screen) unlike some HD DVRs.
    Price includes 1TB Hard Drive, upgradeable to 12TB (2x6TB)
    Also works on most older analogue cameras

    Features:
    Easy Web & Mobile Set up
    2 Hard Drive Slots: up to 12TB (2x6TB)
    2 Audio Channels
    Mobile/Laptop/PC/Smartphone viewing.
    Advanced H.264 High Profile Compression
    Strong processing capacity: Up to 16 Channels1080N @ 15fps, recording and playback synchronously
    Dual stream encoding for high quality recording and smooth broadband speeds.
    Built-in IE plug ins for powerful CMS software included.
    Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view.
    All operations are independent of each other.
    Playback mode Normal , Fast speed Playback, Manual and Single-Frame
    Simple backup via USB stick, external HDD or via network / Internet.
    Alarm alerts via email.
    Auto power recovery, returning to the pre-power-down state
    Complete with Mouse and IR remote

    Technical Data:
    Industrial grade micro controller chip Huawei HIS chipset Hi3521
    Linux Operating system
    Simple to use GUI interface mouse operation
    Channel modes: Display & Screen Displays 1/4/9/16
    TV System: PAL
    Image encoding: H.264 (High Profile)
    Live quality: VGA and HDMI - 16x1080P
    Playback Quality: 16x1080N AHD Simultaneously or 1080P IP
    AHD mode: 16x1080N
    Analogue mode: 16x960H
    NVR mode: 8x1080P
    Mixed Mode: Any Paired combination of HD and standard Cameras
    (4x1080N AHD + 12x1080P IP, 8x1080N AHD + 8x1080P IP, 12x1080N AHD + 4x1080P IP)
    Video Motion Detection: Each channel can be set to 192 multiple detection areas.
    Video input: 16 BNC sockets
    Video output: 1 VGA & 1 HDMI
    Audio input: 2 Phono (RCA)
    Audio output: 1 Phono (RCA) & HDMI
    3G, WIFI extension via USB port
    Tour: Yes
    Power Supply: 12V 4A Included
    Dimension 323(W) x 245(D) x 58mm(H)

    Approximate Hard Drive Recording Times

    16 cameras at 1080N real-time

    1TB:             3 days
    2TB:             1 week
    4TB:             2 weeks
    6TB:             3 weeks
    8TB:             4 weeks
    12TB:           6 weeks


    16 cameras at 960H real-time

    1TB:             1 week
    2TB:             2 weeks
    4TB:             4 weeks
    6TB:             6 weeks
    8TB:             8 weeks
    12TB:           12 weeks


    HX16T
    £150.00

Product Rating

Sign in to rate

Customer Reviews

There have been no reviews for this product.

Login to post a review

Send to Friend

: *
: *
: *
Type the characters you see in the picture:


*

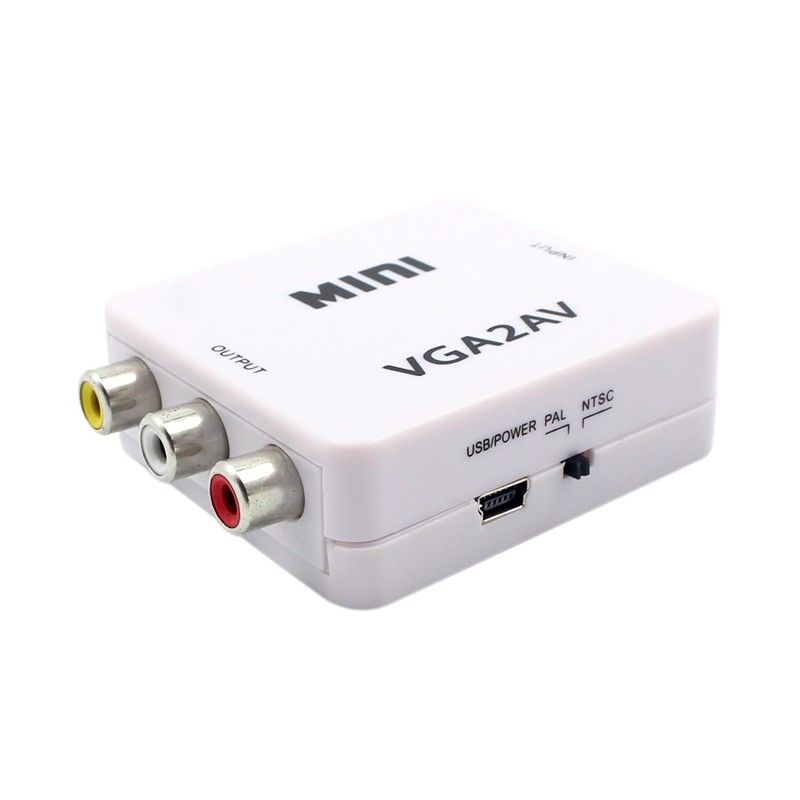

VGA to Composite Video Converter
Converts a VGA signal to composite (TV) signal with phono (RCA) output (BNC adaptor available see BPP). Accepts resolutions up to 1280x1024. Small size, powered from a USB socket it can connect to HD CCTV &  PCs etc .

Great for replacing an old CCTV DVR with a modern HD DVR - no need to replace existing monitors or cables.
Watch internet TV on your normal TV.
Good for Education and Presentations.

*  Pure hardware design,  just Plug & Play
*  No software driver requirement.
*  Supports 640x480@60/72/75/85Hz, 800x600@60/72/75/85Hz,1024x768@60/70/75/85Hz, 1280x1024@60 resolutions.
*  Inputs: VGA, DC
*  Outputs: VIDEO, S-VIDEO, VGA throughput (PC Monitor)

*  Can simultaneously display on a VGA monitor and TV

*  Powered from USB port
*  PAL system

Package contents:
VGA-TV converter
Manual
VGA cable
RCA (phono) composite Video cable
USB Power cable
