Stepper Motor 28BYJ-48 with ULN2003 Driver Board

  • Details

  • Recommended

  • Send

Details

Item Number
28BYJ-48
Item Condition
New
Price
£4.50 (inc VAT £5.40)

Options

Quantity


  • 100pF 63V Ceramic Plate/Disc Capacitor

    100pF 63V Ceramic Plate/Disc Capacitor

    Ceramic Disc 63VDC 5% 2.5mm spacing 100pF

    CER100P
    £0.12
  • 2N7000 Transistor

    2N7000 Transistor

    2N7000 NMOS TO92 SGD N Channel MOSFET Transistor 60V 200mA

    2N7000
    £0.50
  • PP3 9Volt Strong Hard Plastic Battery Snaps

    PP3 9Volt Strong Hard Plastic Battery Snaps

    Strong Solid Plastic PP3 9 Volt  Battery Snaps.

    With 150mm Red & Black PVC covered wires emerging at one end.

    Water repellent body.

    Fits 6LF22, LS9V, GP1604G-C1, 6LR6, MN1604, 6LP3146, 1604AU, CRV9, KF00492, 6LR61 and many more  batteries

    PP3H
    £0.50
  • Stripboard 2.5mm 0.1 inch Spacing 95 x 127mm

    Stripboard 2.5mm 0.1 inch Spacing 95 x 127mm

    Stripboard 2.54mm - 0.1 inch Copper Strips perforated at 0.1 inch (2.54mm) sacing 95 X 127mm

    CQ127
    £2.75
  • Prototype Breadboard with 400 points

    Prototype Breadboard with 400 points

    Solderless Plug-In Breadboard 0.1 inch - 2.54mm spacing.

    400 Points. 2 x 30 x 5 commoned points. 4 rows of 25 points. Self-adhesive backing, or use free-standing.

    deal for experiments & prototyping.

    BB400T
    £4.00
  • Pot 16mm Stereo Lin 10K

    Pot 16mm Stereo Lin 10K

    16mm diameter Dual Control Pot with knurled & Slotted 6mm dia spindle. PCB Pins 5mm spacing. 10K Lin

    20mm Shaft

    DJN10K
    £2.25
  • Temperature and humidity module for Arduino KY-015

    Temperature and humidity module for Arduino KY-015

    What is the KY-015 DHT11 Module?

    The KY015 is a temperature and humidity module for Arduino and other microcontroller projects



    KY-015 module has a DHT11digital temperature and humidity sensor and a resistor. The DHT11 uses a thermistor for the temperature sensing and a capacitive humidity sensor along with an internal IC to give a digital output for both temperature and humidity.



    Voltage : 3.3 to 5VDC

    Humidity range : 20% to 90% @ 5% RH accuracy

    Temperature range : 0C to 50C at 2C accuracy

    Size 30x15mm



    How Can I use the KY-015 Module to monitor temperature and humidity?

    Here is an example project to measure temperature and humidity using the KY015 module and an Arduino Uno



    Temperature and Humidity Sensor

    In this project, we will be building a weather station that can measure both temperature and humidity.

    This is what you will need:

    Tools

    Jumper Leads (male to female)



    Components

    Arduino Uno x 1 or Arduino Nano x 1

    KY-15 sensor module



    Libraries

    DHT Sensor Library

    Adafruit Unified Sensor Library



    Step 1

    First you will nedd to assemble the project. Connect everything together using the wiring diagram bellow for reference.





    Connect the KY-015 sensor module to the Arduino

    KY-015                        Arduino

    Ground - - - - - - - - - -  Ground
    Vcc - - - - - - - - - - - - - - 3v3
    Data - - - - - - - - - - - - -  A0

    A 10KΩ pull-up resistor is built in to the KY-015



    Step 2

    Connect your Arduino to the PC and install the above Libraries. If you don’t know how to do this, CLICK HERE and follow the “Installing Arduino Libraries” section.



    Step 3

    We can now create the code to get this all working

    First, delete the code in the IDE window, then include the aforementioned libraries:

    #include "DHT.h"

    This bit of code imports the DHT library and links it to the sketch.

    #define DHTPIN A0
    #define DHTTYPE DHT11

    This bit of code defines which pin is KY015 connected to and sets the type of sensor (KY015 uses DHT11)

    DHT dht(DHTPIN, DHTTYPE);

    This bit of code initialises the sensor

    void setup() {
      Serial.begin(115200);
      Serial.println(F("DHT11 test!"));
      dht.begin();
    }

    The setup bit of code initialises serial output with baud rate of 115200 and prints DHT11 test! In the console

    void loop() {
       delay(2000);

    This bit makes the Arduino wait 2 seconds between measurements

      float h = dht.readHumidity();

    Read humidity from the sensor

      float t = dht.readTemperature();
    Read temperature from the sensor
      Serial.print(F("Humidity: "));
      Serial.print(h);
      Serial.print(F("%  Temperature: "));
      Serial.print(t);
      Serial.println(F("°C "));
    }

    Print the latest reading in serial monitor



    Finished Code:

    #include "DHT.h"

    #define DHTPIN A0 // Digital pin connected to the DHT sensor
    #define DHTTYPE DHT11 // DHT 11
    DHT dht(DHTPIN, DHTTYPE);

    void setup() {
      Serial.begin(115200);
      Serial.println(F("DHT11 test!"));

      dht.begin();
    }

    void loop() {
      delay(2000);

      float h = dht.readHumidity();
      float t = dht.readTemperature();

      Serial.print(F("Humidity: "));
      Serial.print(h);
      Serial.print(F("%  Temperature: "));
      Serial.print(t);
      Serial.println(F("°C "));
    }



    KY015
    £2.50
  • Solder 60% Tin, 40% Lead  0.7m diameter 100grams

    Solder 60% Tin, 40% Lead 0.7m diameter 100grams

    Eagle 100 grams of High Grade 0.7mm diameter 60/40 Tin/Lead with Resin Flux

    • 60% Tin, 40% Lead Solder with 2% Resin cored Flux

    • Melting point 185°C

    • First class branded solder wire.

    • Flux Cored for very smooth soldering



    SOV107
    £8.00
  • Digital Panel Meter for Voltage and Current 0-100VDC 0-10ADC

    Digital Panel Meter for Voltage and Current 0-100VDC 0-10ADC

    Dual Display Panel Meter, 0-100VDC and 0-10ADC


    This handy compact panel meter will display the voltage and current clearly. It is ideal for a bench power supply or any project that requires accurate voltage and or current measurement. The meter can either be powered from the supply it is measuring if it is between 4.5-30VDC or from an independant power source.

    Voltage Measurment : 0 - 100VDC
    Current Measurment : 0 - 10ADC
    Working Voltage : 4.5 - 30VDC
    Dimensions : (W)48mm x (H)29mm x (D)22mm

    Connetions
    Red (Thick) - Voltage in for Current Measurment
    Black (Thick) - Voltage out for Current Measurment
    Red (Thin) - Supply Positive 4.5-30VDC (connect to voltage to be measured if not using a seperate supply)
    Black (Thin) - Supply Ground (Do not connect if not using a seperate supply)
    Yellow (Thin) - Voltage to be Measured 0-100VDC
    DPM
    £5.50

Send to Friend

: *
: *
: *
Type the characters you see in the picture:


*

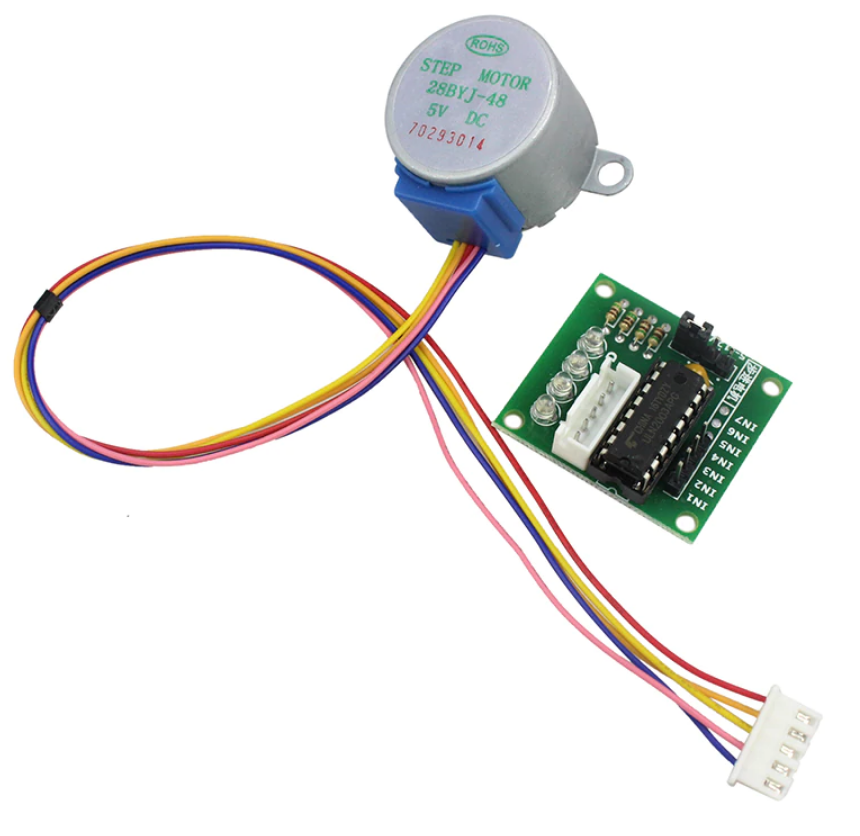

28BYJ-48 Stepper Motor wih ULN2003 IC & Driver Board


This is a 4 phase 5VDC stepper motor with 4 coils, with a step angle of either 11.25 or 5.625 degrees giving it 32 or 64 steps on the motor using either half or full steps. It also has a 1:64 gearbox built in making the steps at the shaft either 2048 or 4096. It is supplied with a ULN2003 driver board.

Voltage : 5VDC
Step angle : 5.625 1/64
Max Current : 300mA
Diameter : 28mm
Height : 19mm
Shaft Length : 8mm
Driver PCB Size : 32x35mm
