LCD screen 16 characters 2 line Arduino compatible

Details
Recommended
Send

View Detailed Images 2

Details

Item Number

LCD1602B

Item Condition

New

Price

£4.50 (inc VAT £5.40)

Options

Quantity

Hammond Mfg. ABS Box 109 x 81 x 41mm (1591XXSSBK)

Hammond Manufacturing Black ABS Plastic Box with Screw-down lid. 109 x 81 x 41mm

Hammond Part no.: 1591XXSSBK

ABS20

£3.00

Pack of 100 Single Sided PCB Pins to fit Pierced Boards, Veroboard, Stripboard

Pack of 100 Single Sided Circuit Pins to fit 0.1 inch 2.5mm Strip Board, Matrix Board & Plain Board

CQP1

£2.50

High Quality Silicone Test Leads with Protected 4mm Plugs

HIGH QUALITY SILICONE MULTIMETER TEST LEADS with 4mm SHROUDED PLUGS

Cable Length: 880mm
Total length:1050mm
Red: positive Black: negative
Maximum Voltage: 1000V. Max Current 20A

Features:

Supplied with removable probe protection caps
Shrouded Connectors
Comfortable Rubber Grip
Fit most Mulitmeters

TL4G

£3.50

65 Breadboard Jumper Leads Solderless

Solderless Jumper Leads for use with Breadboard

This set of coloured jumper leads, invaluable when creating circuits with Breadboard. Seven different colours and Four different lengths will simplify your connections, keeping your work neat and clear to identify.

Colours: Red, Orange, Yellow, Green, Blue, Black and White

Lengths: 120mm, 165mm, 200mm and 240mm

JL65

£3.25

I2C Parallel to Serial Converter for Arduino Type LCD Screens

I2C Paralel to 2 Pin Serial converter for Arduino type LCD screens

This converter can be soldered directly to a standard 1602 LCD screen to convert it to the more convenient 2 pin serial (I2C) used in many Arduino projects.

There is a removable jumper to allow connection with both backlit and non backlit screens.

A potentiometer can adjust the brightness & contrast of the LCD.

Connections

GND = Ground

VCC = 5V

SDA = Serial Data Line

SCL = Serial Clock Line

KY1602

£2.50

Red Illuminated Single Pole SPST Rocker Switch 16 Amps 240VAC

Illuminated Standard Rocker Switch: Single Pole SPST On/Off with Red Neon 16 Amps 240VAC

Rated 250VAC 16A

Fits 11 X 30mm Cut-out.

Silver Plated Contacts for Long Life

6.3mm Flat blade connectors.

Can be soldered.

Pins Marked 1 & 2 are the switch, pin 3 is neutral for the neon.

0°C to +85°C operating temperature

RKL119

£1.75

4mm diameter Audio Screened Cable per metre

High Quality Extra Flexible 4mm Audio Lap Screened Cable - per metre - continuous length up to 50m

Copper cored Round Audio Cable 4mm diameter Black.

Number of Strands: 16/0.12

Also available on 100m reels100M reels. Please go to ZS2H

ZS2

£1.25

0.1uF 63V Ceramic Plate/Disc Capacitor

Ceramic Disc 63VDC 5% 2.5mm spacing 100nF (0.1uF)

CER100N

£0.15

Digital Panel Meter for Voltage and Current 0-100VDC 0-10ADC

Dual Display Panel Meter, 0-100VDC and 0-10ADC

This handy compact panel meter will display the voltage and current clearly. It is ideal for a bench power supply or any project that requires accurate voltage and or current measurement. The meter can either be powered from the supply it is measuring if it is between 4.5-30VDC or from an independant power source.

Voltage Measurment : 0 - 100VDC

Current Measurment : 0 - 10ADC

Working Voltage : 4.5 - 30VDC

Dimensions : (W)48mm x (H)29mm x (D)22mm

Connetions

Red (Thick) - Voltage in for Current Measurment

Black (Thick) - Voltage out for Current Measurment

Red (Thin) - Supply Positive 4.5-30VDC

Black (Thin) - Supply Ground

Yellow (Thin) - Voltage to be Measured 0-100VDC

DPM

£5.50

Send to Friend

Your name:	*
Your email:	*
Recipient's email:	*
Add a personal message
Image verification
Type the characters you see in the picture:
	*

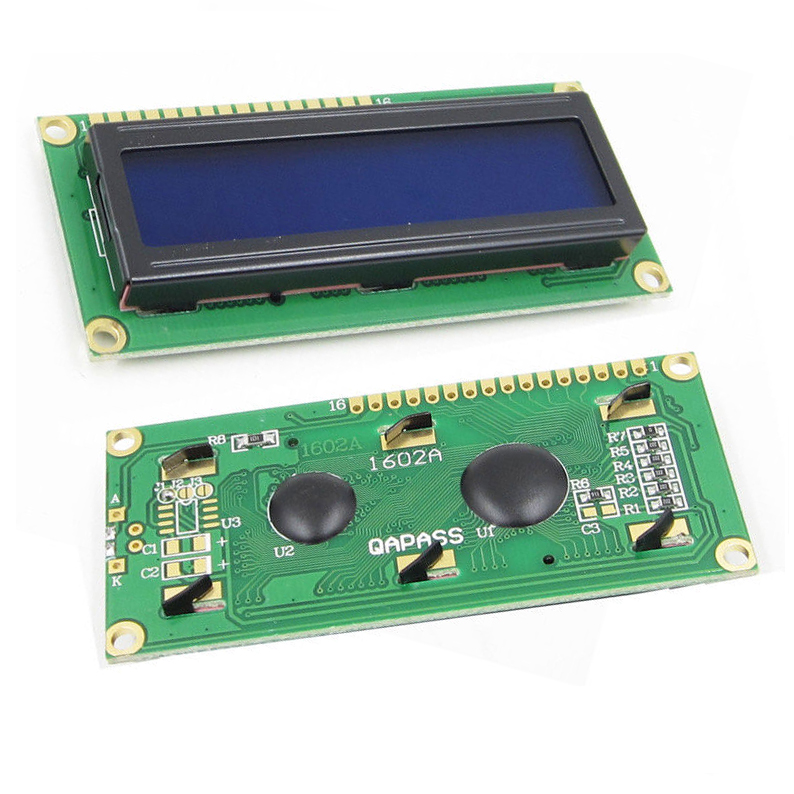

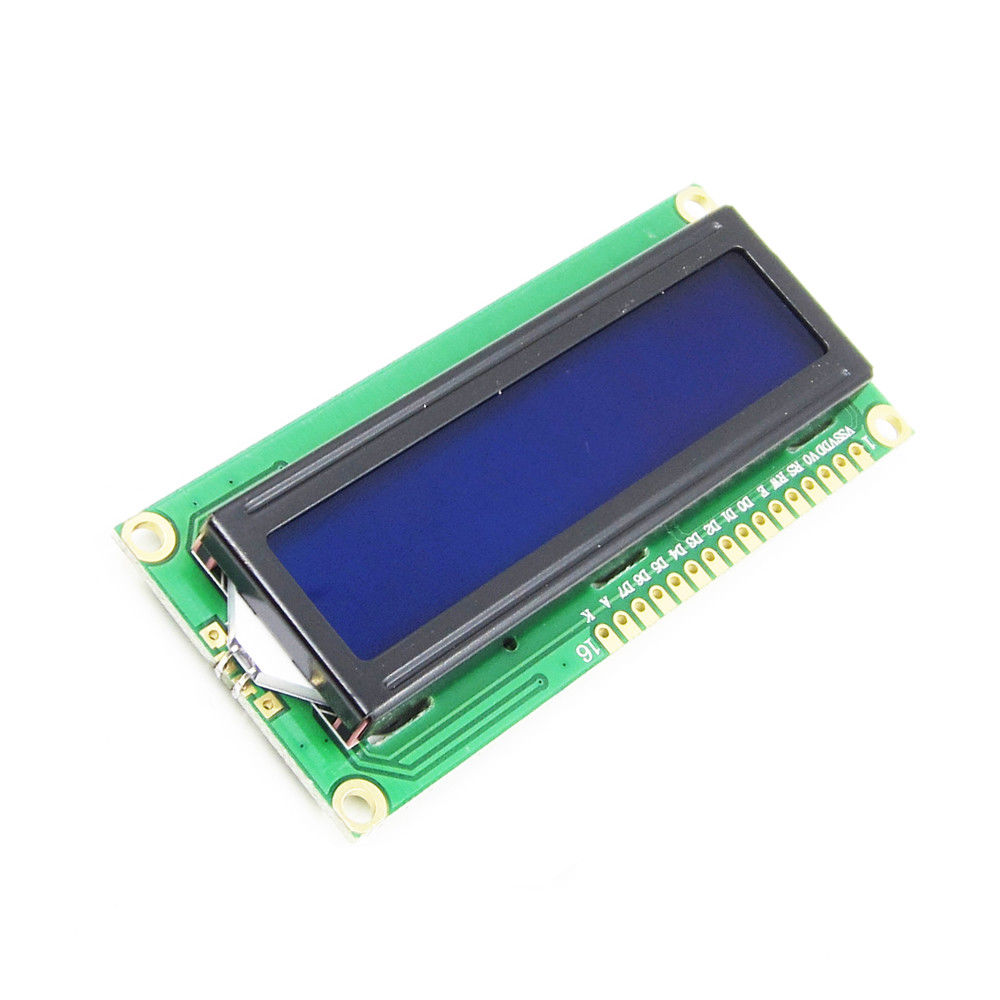

Arduino compatible Backlit LCD screen with 2 lines of 16 Characters (32 total)

This LCD Screen is a great addition to many Arduino and other projects.

The blue lit screen is blue has white characters and a backlight.

Specification:

Display Format: 16 Characters x 2 Lines (32 total)

Character Size: 3.07mm(W) x 6.56mm(H)

Backlight: Yes

Dimensions: 80mm(W) x 35mm(H) x 11mm(T)
