High Definition 2.1 Megapixel 1080P White HD Eyeball Dome Camera with 20M Night Vision 4 in 1

Details
Recommended
Send

View Detailed Images 1

Details

Item Number

CUE20W

Weight

1.00 Kg

Item Condition

New

Was

~~£26.75~~

Price

£25.00 (Save 7%) (inc VAT £30.00)

Quantity	Price
4+ Items	£23.25

Options

Quantity

40 pin Turned IC Socket

IC High Quality Turned Pin Socket. Totally protected from solder. Gold plated contacts 40 pin

TDL40

£1.00

ZTX653 Transistor

NPN ELINE EBC 100V 2A 175MHz

ZTX653

£3.00

ZTX753 Transistor

PNP ELINE EBC 100V 2A 140MHz

ZTX753

£1.75

74HC373 Integrated Circuit (IC)

HCMOS Tristate Octal D Latch 20DIL

74HC373

£0.75

LM1881N Integrated Circuit (IC)

IC Sync Separator 8DIL

LM1881N

£3.65

2.1 x 5.5mm DC Line Socket with Screw Terminal Block

DC Line Socket (Female) 2.1 x 5.5mm with 2 way screw terminal block connection Marked + and -

Accepts 2.1 x 5.5mm Plugs.

RXL

£0.75

20 Metre BNC Male to BNC Male Plus DC Male to DC Socket

20 Metres Length of CCTV Shot-gun Cable.

High Quality RG59 Coaxial Lead with Power wires . BNC Plug & DC Plug one end and BNC Plug & DC Socket at the other end.

LBR20

£13.75

470uF 16V Low Impedance (Low ESR) Radial Electrolytic Capacitor105 deg

Very Low Impedance (Low ESR), Long Life, Audio Electrolytics. High Ripple. 105 deg C 470uF 16V

DIms: 7 x 11mm

470Y16

£0.25

500 Piece Electrolytic Capacitor Kit 0.1µF - 1000µF

This handy capacitor kit contains all the common values between 100nF to 1000µF, which makes it ideal for hobbyists and technicians alike. The 105°C rating ensures that the capacitors retein their reliability even in high temperature environments. It comes in a handy partitioned box.

This kit contains the following values:

100nF @ 50V

220nF @ 50V

470nF @ 50V

1µF @ 50V

2.2µF @ 50V

3.3µF @ 50V

4.7µF @ 50V

10µF @ 25V

10µF @ 50V

22µF @ 16V

22µF @ 25V

33µF @ 16V

47µF @ 10V

47µF @ 25V

47µF @ 50V

100µF @ 16V

100µF @ 25V

220µF @ 10V

220µF @ 25V

330µF @ 50V

470µF @ 10V

470µF @ 16V

680µF @ 16V

1000µF @ 16V

HK500

£15.00

Send to Friend

Your name:	*
Your email:	*
Recipient's email:	*
Add a personal message
Image verification
Type the characters you see in the picture:
	*

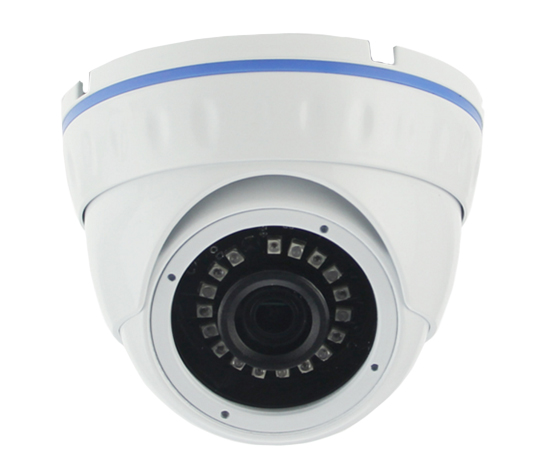

High Definition 2.1 Megapixel HD 1080P White Eyeball Dome Camera with 20M Night Vision.

For Outdoors and Indoor. 4 in 1 camera: AHD, TVI, CVI and CVBS

High Definition camera with a high quality, wide-angle lens, Its high definition image is comparable to HD Television Pictures. Ideal to upgrade old CCTV cameras on existing cables.

Athough this is a high definition camera, we can set it for older non-HD DVRs if you contact us on 020 8452 0161.

Specification:

Image Sensor: 1/2.9" Sony EXMOR IMX323 CMOS PAL/NTSC
DSP: Fulham FH8536E
Resolution: 2.0 Megapixel, 1920(H)×1080(V) 1080P @ 25/30fps
Lux: 0.01 IR off, 0 IR on
Lens: Fixed 3.6mm IR Cut Filter
Wide Dynamic Range: Digital
Noise Reduction: 3DNR
Shutter: 1/50-1/100,000
Auto White Balance: Yes
AGC: Yes
Anti-Fog Dual Glass: Yes
Power Reqd: 12VDC 300mA max
Infra-red Source: 18pcs x 14µ SMD IR LEDs
Infra Red Beam: 20 Metres
Terminations: BNC & DC 2.1 x 5.5mm on Flying Leads
Size: D94.5 X H76mm
