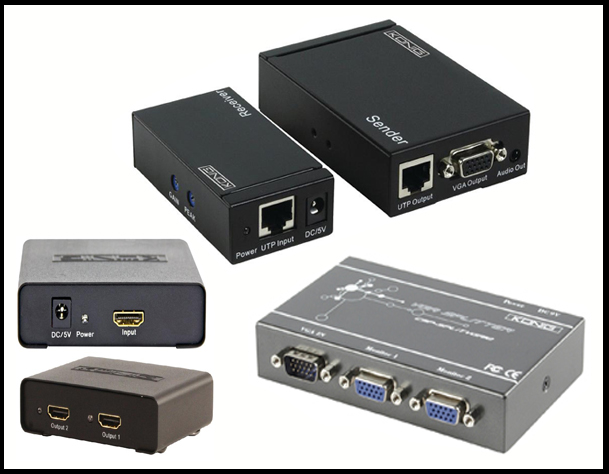

Converters and Splitters

100m Range 4K HDMI Extender Over Ethernet Kit

• Easy transmission of 4K and FHD signals up to 100m using a single Ethernet cable
• Simple plug and play connection and installation
• Built in IR function enables control of transmission devices remotely
• Audio extraction function for connection to speakers and amplifiers
• Gold plated HDMI connectors for optimum signal transfer
• HDCP2.2 Compliant
• Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
• Requires Cat5e/6 STP/FTP cable (not supplied)
• Supplied with fixing brackets for rack mounting

AV to HDMI converter

Upscales standard Definition video & audio to HD (HDMI) to 720P or 1080P (Switchable).

Connects older equipment without a HD output to a modern HD TV.

USB powered.

Supported Inputs: NTSC 480i or PAL 576i

Selectable Outputs: 720P or 1080P

Package Contents
HDMI converter
USB cable

Composite Video to VGA Converter
Converts a Composite (TV) signal to VGA signal with phono (RCA) outputs (BNC adaptor available see BPP). VGA output resolutions up to 1920x1080. Small size, powered from a USB socket it can connect to HD CCTV,  PCs, etc.

*  Pure hardware design,  just Plug & Play
*  No software driver requirement.
*  Supports VGA resolutions 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps; 1280x720 at 60 fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps; 1920x1080 60 fps resolutions.
*  Inputs: Composite Video and Stereo Audio (RCA), and USB (power)
*  Outputs: VGA, 3.5mm line out
*  Powered from USB port
*  PAL or NTSC system

Package contents:
Composite to VGA converter
Manual
USB Power cable

HDMI input to Composite Video and Audio (Phono RCA) Output Converter

This HDMI to AV unit converts HDMI video & audio to standard AV composite video & stereo audio.

Works  on 720P or 1080P HDMI into PAL (UK) & NTSC (American) in either 480i or 576i.

Ideal for connecting modern HD equipment like CCTV DVRs, BlueRay Players, SkyHD Boxes to old SD (standard definition) inc TVs,VHS VCRs,DVD recorders etc.

USB powered , so can be powered from the device you are converting.

Resolutions Supported

640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x1024@60Hz,
1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz,480i/60Hz,480p/60Hz,576i/60Hz,
576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz.
CVBS output:PAL,NTSC_M,and NTSC_J

Package Contents:
HDMI converter
Manual
USB cable

SCART to HDMI converter

Converts old SCART video & audio to HD (HDMI).

Suitable for connecting older equipment without a HD output to a modern HD TV.

USB powered (lead included)

Supported Inputs: NTSC 480i or PAL 576i, SECAM

Selectable Outputs: 720P or 1080P

Package Contents:
SCART to HDMI converter
USB cable
User Manual

USB Sound Card

Plug-and-play USB soundcard with 3.5mm TRS input/output. Useful for PCs that do not have headphone/3.5mm output.



VGA to Composite Video Converter
Converts a VGA signal to composite (TV) signal with phono (RCA) outputs (BNC adaptor available see BPP). Accepts resolutions up to 1920x1080. Small size, powered from a USB socket it can connect to HD CCTV &  PCs etc .

Great for replacing an old CCTV DVR with a modern HD DVR - no need to replace existing monitors or cables.
Watch internet TV on your normal TV.
Good for Education and Presentations.

*  Pure hardware design,  just Plug & Play
*  No software driver requirement.
*  Supports 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps; 1280x720 at 60 fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps; 1920x1080 60 fps resolutions.
*  Inputs: VGA,, Audio (3.5mm Stereo) and USB DC
*  Outputs: Video and Stereo Audio (RCA)
*  Powered from USB port
*  PAL or NTSC system

Package contents:
VGA-TV converter
Manual
USB Power cable

VGA to HDMI Video Converter
Converts a VGA signal to HDMI signal. Accepts resolutions up to 1920x1080. Small size, powered from a USB socket it can connect to HD CCTV &  PCs etc .

Great for replacing an old CCTV DVR with a modern HD DVR - no need to replace existing monitors or cables.
Good for Education and Presentations.

*  Pure hardware design,  just Plug & Play
*  No software driver requirement.
*  Supports 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps; 1280x720 at 60 fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps; 1920x1080 60 fps resolutions.
*  Inputs: VGA,, Audio (3.5mm Stereo) and USB DC
*  Outputs: HDMI (with audio)
*  Powered from USB port

Package contents:
VGA-HDMI converter
Manual
USB Power cable
