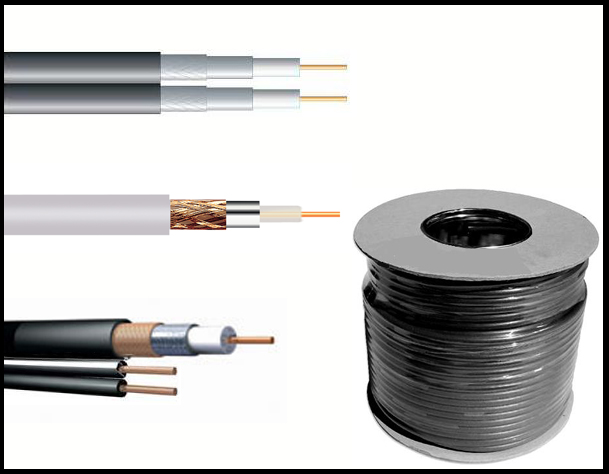

Coaxial Cable for TV, CCTV, Satellite, etc

Products


  • White RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum

    White RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum

    White RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum

    RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
    75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

    Also availble in shorter cuts. Please go to ZR41
    Solid CCS conductor
    Foam filled PE dielectric
    Binded aluminium screen
    Aluminium braid
    Supplied in 100m reel with metric cut markers

    Screen Aluminium / PET foil
    Dielectric 4.6mmØ foam PE
    Cable diameter 6.6mmØ
    Impedance 75 Ohms
    Capacitance 54pF/m
    Velocity factor 83%
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m



    Item Number: ZR41H
    £24.50 (inc VAT £29.40)

  • White RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre

    White RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre



    White RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre, Max length 50M

    RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
    75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

    For complete 100M Drums please go to ZR41H

    Solid CCS conductor
    Foam filled PE dielectric
    Binded aluminium screen
    Aluminium braid
    Supplied in 100m reel with metric cut markers

    Screen Aluminium / PET foil
    Dielectric 4.6mmØ foam PE
    Cable diameter 6.6mmØ
    Impedance 75 Ohms
    Capacitance 54pF/m
    Velocity factor 83%
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m



    Item Number: ZR41
    £0.35 (inc VAT £0.42)

  • Black RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum

    Black RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum

    Black RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum



    RG6 75 ohms Filled Coaxial Cable - Copper Braid

    75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, PET dielectric, aluminium foil screen, copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmissio
    RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
    75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

    Also available in shorter cuts. See ZR61

    Solid CCS conductor
    Foam filled PE dielectric
    Binded aluminium screen
    Aluminium braid
    Supplied in 100m reel with metric cut markers

    Screen Aluminium / PET foil
    Dielectric 4.6mm foam PE
    Cable diameter 6.6mm
    Impedance 75 ohms
    Capacitance 54pF/m
    Velocity factor 83 percent
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m
    Length 100m
    Weight 3.8kg


    Item Number: ZR61H
    £24.00 (inc VAT £28.80)

  •  Black RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre

    Black RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre

    White RG6 Polyethylene Filled Coaxial Cable for TV & Satellite per metre. Max length 50m

    RG6 75 ohms Filled Coaxial Cable - Copper Braid

    75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, PET dielectric, aluminium foil screen, copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
    For complete 100M Drums please go to ZR61H

    Solid CCS conductor
    PE dielectric
    Binded aluminium screen
    Aluminium braid
    Supplied in 100m reel with metric cut markers

    Screen Aluminium / PET foil
    Dielectric 4.6mm foam PE
    Cable diameter 6.6mm
    Impedance 75 Ohms
    Capacitance 54pF/m
    Velocity factor 83 perecent
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m


    Item Number: ZR61
    £1.00 (inc VAT £1.20)

  • Twin Satellite Coaxial Cable in Black. Sold by Metre Multiples

    Twin Satellite Coaxial Cable in Black. Sold by Metre Multiples

    Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid per metre

    Also available in 100 metre drums: please go to ZRT6H

    75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

    Solid CCS conductor
    Foam filled PE dielectric
    Auminium screen
    Aluminium braid
    Supplied iwith metric cut markers
    Specification:
    CSA 2 x 0.79mm²
    Conductor diameter 2 x 1mm
    Conductor material Solid CCS
    Braid 2 x 64/0.12mm
    Braid material Aluminium
    Screen Aluminium / PET foil
    Dielectric 4.6mm foam PE
    Cable : diameter 2 x 6.6mm
    Impedance 75 Ohms
    Capacitance 54pF/m
    Velocity factor 83%
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m


    Item Number: ZRT6
    £1.50 (inc VAT £1.80)

  • Twin Satellite Coaxial Cable in Black. 100 Metre Drum

    Twin Satellite Coaxial Cable in Black. 100 Metre Drum

    Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid 100 metre drum

    75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

    Also available in metre lengths: please go to ZRT6

    Solid CCS conductor
    Foam filled PE dielectric
    Auminium screen
    Aluminium braid
    Supplied iwith metric cut markers
    Specification:
    CSA 2 x 0.79mm²
    Conductor diameter 2 x 1mm
    Conductor material Solid CCS
    Braid 2 x 64/0.12mm
    Braid material Aluminium
    Screen Aluminium / PET foil
    Dielectric 4.6mm foam PE
    Cable : diameter 2 x 6.6mm
    Impedance 75 Ohms
    Capacitance 54pF/m
    Velocity factor 83%
    Return loss 5-400MHz 24dB min./100m
    Return loss 450-1000MHz 20dB min./100m
    Return loss 1000-2150MHz 16dB min./100m
    Attenuation @ 5MHz 2.8dB max./100m
    Attenuation @ 50MHz 5.1dB max./100m
    Attenuation @ 100MHz 6.9dB max./100m
    Attenuation @ 200MHz 10.1dB max./100m
    Attenuation @ 400MHz 14.9dB max./100m
    Attenuation @ 860MHz 20.1dB max./100m
    Attenuation @ 1000MHz 22.2dB max./100m
    Attenuation @ 1750MHz 29.6dB max./100m
    Attenuation @ 2150MHz 33.3dB max./100m


    Item Number: ZRT6H
    £41.00 (inc VAT £49.20)

  • Black RG59U 75 ohm Coaxial Cable per Metre

    Black RG59U 75 ohm Coaxial Cable per Metre

    Black RG59U Cable per Metre. Max length 50M
    Suitable for CCTV with 64/0.12mm Braid & Aluminium Foil Screen. 6mm PVC Black Outer Casing. 75 ohms impedance. Will fit any of our range of 75 ohm BNC connectors.

    For 100M drums please see ZR59H



    Item Number: ZR59
    £0.90 (inc VAT £1.08)

  • Black RG59U 75 ohm Coaxial Cable 100 Metre Drum

    Black RG59U 75 ohm Coaxial Cable 100 Metre Drum

    Black RG59U Cable 100M Drum


    with 64/0.12mm Braid & Foil. 6mm PVC Black Outer Casing. 75 ohms impedance. Specified for CCTV and other uses. Will fit any of our range of 75 ohm BNC connectors.

    Price per 100 metre drum



    Item Number: ZR59H
    £16.85 (inc VAT £20.22)

  • White RG59U 75 ohm Coaxial Cable in White per Metre

    White RG59U 75 ohm Coaxial Cable in White per Metre

    White RG59U Cable. per Metre Max length 50M
    Suitable for CCTV with 64\0.12mm Braid & Aluminium Foil. 6mm PVC White Outer Casing. 75 ohms impedance. Will fit any of our range of 75 ohm BNC connectors.
    Also available in 100M Drums- please see ZR59WH)



    Item Number: ZR59W
    £0.90 (inc VAT £1.08)

  • White 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    White 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    White RG59U Cable with Power Wires 100M Drum

    2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.


    64/0.12mm Braid & Aluminium Foil. 6mm PVC Black Outer Sleeve. Power Wires with White Polarity Stripe.
    75 ohms impedance. Specified for CCTV. Will fit any of our range of 75 ohm BNC connectors. Easy to use.

    Price per 100M drum.



    Item Number: ZR59WWH
    £42.50 (inc VAT £51.00)

  • Black RG59U 75 ohm Coaxial Cable with power wires per Metre

    Black RG59U 75 ohm Coaxial Cable with power wires per Metre

    Black RG59U Cable with Power Wires per Metre. Max length 50M

    2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.


    64/0.12mm Braid & Aluminium Foil. 6mm PVC Black Outer Sleeve. Power Wires with White Polarity Stripe.
    75 ohms impedance. Specified for CCTV. Will fit any of our range of 75 ohm BNC connectors. Easy to use.

    Also available in 100M drums, see ZR59PWH



    Item Number: ZR59PW
    £1.75 (inc VAT £2.10)

  • 250 Metres Black Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    250 Metres Black Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    Black RG59U Cable with Power Wires 250M Drum
    2 power wires are moulded on to the outer of this RG59U coaxial cable, specially made for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.
    64/0.12mm Braid & Aluminium Foil. 6mm PVC Black Outer Sleeve. Power Wires with White Polarity Stripe.
    75 ohms impedance. Specified for CCTV. Will fit any of our range of 75 ohm BNC connectors. Easy to use.

    Price per 250M drum.



    Item Number: ZR59PWT
    £106.27 (inc VAT £127.52)
    £118.75 , save 11%
  • 500 Metre Drum RG59U 75 ohm Coaxial Cable with power wires in black

    500 Metre Drum RG59U 75 ohm Coaxial Cable with power wires in black

    RG59U Cable with Power Wires 500M Drum


    2 power wires are moulded on to the outer of this RG59U coaxial cable, specially made for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.


    64/0.12mm Braid & Aluminium Foil. 6mm PVC Black Outer Sleeve. Power Wires with White Polarity Stripe.
    75 ohms impedance. Specified for CCTV. Will fit any of our range of 75 ohm BNC connectors. Easy to use.

    Price per 500M drum.



    Item Number: ZR59PWD
    £212.50 (inc VAT £255.00)

  • Black 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    Black 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires

    High Quality Black RG59U Cable with Power Wires 100M Drum

    2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.


    64/0.12mm Braid & Aluminium Foil. 6mm PVC Black Outer Sleeve. Power Wires with White Polarity Stripe.
    75 ohms impedance. Specified for CCTV. Will fit any of our range of 75 ohm BNC connectors. Easy to use.

    Also available in shorter cut. please se ZR59PW



    Item Number: ZR59PWH
    £42.50 (inc VAT £51.00)

  • RG213/U 10.4mm RF Transmission Coaxial Cable in Black per Metre

    RG213/U 10.4mm RF Transmission Coaxial Cable in Black per Metre

    RG213/U 10.4mm Coaxial Cable for RF Transmission per Metre. Max length 50M
    50 Ohms coaxial cable. Plain copper conductor and braided screen with solid PE insulation.
    7/0.75mm, 192/0.18mm, 10.4mm outer diameter. Black Sheath

    Complete 100M Drums also available - please go to ZR67H



    Item Number: ZR67
    £3.00 (inc VAT £3.60)

  • RG213/U 10.4mm RF Transmission Black Coaxial Cable 100 Metre Wooden Drum

    RG213/U 10.4mm RF Transmission Black Coaxial Cable 100 Metre Wooden Drum

    100 Metres RG213/U 10.4mm Coaxial Cable for RF Transmission


    50 Ohms coaxial cable. Plain copper conductor and braided screen with solid PE insulation.
    7/0.75mm, 192/0.18mm, 10.4mm outer diameter. Black Sheath

    Price per 100 Metre Wooden Drum



    Item Number: ZR67H
    £195.00 (inc VAT £234.00)

  • Standard TV Coaxial Cable in Brown 6.6mm diameter. Sold by Metre Multiples

    Standard TV Coaxial Cable in Brown 6.6mm diameter. Sold by Metre Multiples

    75 OHM LOW LOSS DOWNLEAD BROWN 100 Metre Reel

    75 Ohms low loss coaxial downlead. Braided aluminium screen with air-spaced polythene dielectric. Outer diameter 6.6mm
    Attenuation @ 1000MHz: 27.0dB/m
    Attenuation @ 100MHz: 7.0dB/m
    Attenuation @ 200MHz: 11.0dB/m
    Attenuation @ 600MHz: 19.5dB/m
    Capacitance: 55.0pF/m
    Impedance: 75 Ohms

    Price per 1 Metre continuous length up to 60M


    Item Number: ZR42
    £0.50 (inc VAT £0.60)



Trustpilot
