|Now FREE Delivery on UK mainland orders over £30+VAT|
A Pair of CCTV HD Baluns
Send & Receive Signals via CAT5 / CAT6 / CAT7 Cable.
RJ45 Sockets on both items
Can be used with both HD and older techniques, between cameras & DVRs.
price per pair
A pair of CCTV Baluns with Audio
Send & Receive Video, Power & Audio via CAT5 / CAT6 / CAT7 Cable
RJ45 sockets on both items
DC Line Plug 2.1 x 5.5mm with 2 way screw terminal block connection Marked + and -
DC Line Socket (Female) 2.1 x 5.5mm with 2 way screw terminal block connection Marked + and -
Accepts 2.1 x 5.5mm Plugs.
Switchmode Plug in type (Regulated) Power Supply. 12VDC (Single voltage) 2A max. 5.5 x 2.1mm (Centre Positive) plug on the output. Fits most CCTV System Cameras etc
Junction Box for external (IP55) and internal use 100 x 100 x 50mm
with snap-shut cover and 6 flexible cable 29mm entry holes. Knock out mounts on base. 4 stainless steel screws.
9Volt to 24Volt 24Watt HIGH EFFICIENCY POWER SUPPLY with 7 Voltages &
Regulated Voltages Selected by Small Rotary Switch:
Voltages: 9V, 12V, 13.5V, 15V, 18V, 20V & 24V
12 V 2Amps
15 V 1.6Amps
18 V 1.33Amps
20 V 1.2Amps
24 V 1Amp
Multi input voltages: Can operate from 100VAC to 240VAC 50/60Hz
6 Different Adaptor plugs
High Definition 1080P HD 4 Channel Real-time AHD DVR Audio on One Channel
With this latest Quiet Operating Fanless 4 Channel DVR you can record either AHD Cameras (1.0MP up to 2.0MP) at stunning High Definition.
Will playback all 4 cameras at the same time (split screen or single screen) unlike other inferior HD Price includes 1TB Hard Drive, upgradable to 6TB.
Can work on some old analogue cameras
Easy Web & Mobile Set up
1 Hard Drive: up to 6TB
1 Audio Channel
Advanced H.264 High Profile Compression
Strong processing capacity: Up to 4 Channels AHD 1080N @ 25fps recording and playback synchronously
Dual stream encoding for high quality recording and streaming on all broadband speeds.
Built-in IE plug ins, or powerful CMS software included.
Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view.
All operations are independent of each other.
Playback mode Normal , Fast speed Playback, Manual and Single-Frame
Simple backup via USB stick, external HDD or via network / Internet.
Alarm alerts via email.
Auto power recovery, returning to the pre-power-down state
Complete with Mouse and IR remote
Industrial grade micro controller chip Huawei HIS chipset Hi3521
Linux Operating system
Simple to use GUI interface mouse operation
Channel modes: Display & Screen Displays 1/4
TV System: PAL
Image encoding: H.264 (High Profile)
Live quality: VGA and HDMI - 4x1080P
Playback Quality: 4x1080N AHD Simultaneously or 1080P IP
AHD mode: 4x1080N
Analogue mode: 4x960H
NVR mode: 4x1080P
Mixed Mode: (2x1080N AHD + 2x960H Analogue) or (2x1080N AHD + 2x1080P IP)
Video Motion Detection: Each channel can be set to 192 multiple detection areas.
Video input: 4 BNC sockets
Video output: 1 VGA & 1 HDMI
Audio input: 1 Phono (RCA)
Audio output: 1 Phono (RCA) & HDMI
3G, WIFI extension via USB port
Power Supply: 12V 2A Included
Dimension 260(W) x 221(D) x 44mm(H)
Approximate Hard Drive Recording Times
4 cameras at 1080N real-time
1TB: 2 weeks
2TB: 4 weeks
4TB: 8 weeks
6TB: 12 weeks
4 cameras at 960H real-time
1TB: 4 weeks
2TB: 8 weeks
4TB: 16 weeks
6TB: 24 weeks
Login to post a review

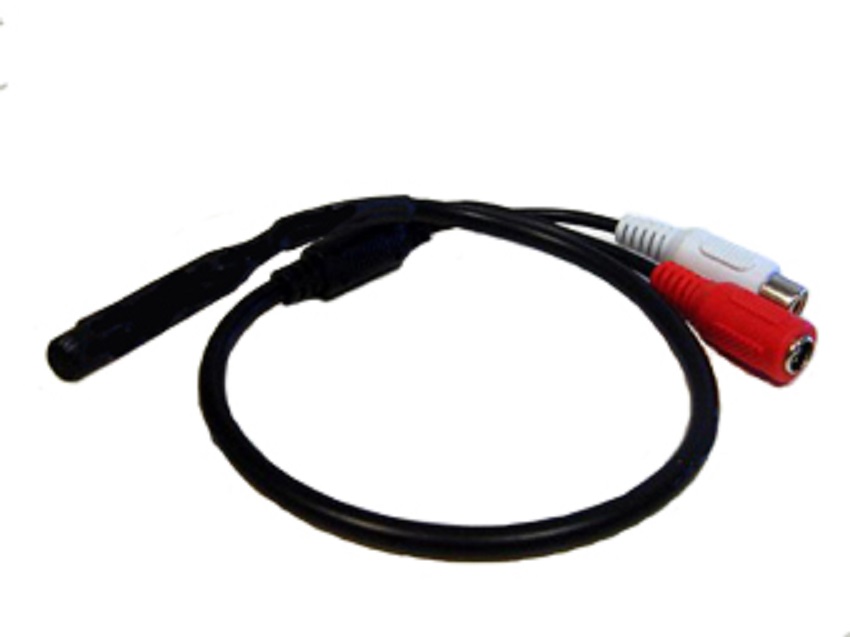

* Power 12VDC @ 50mA Via 2.1 x 5.5mm DC Socket
* Audio line out Via Phono Socket (RCA)
* Dimensions: 8x30mm (not including lead) Length including lead 450mm
