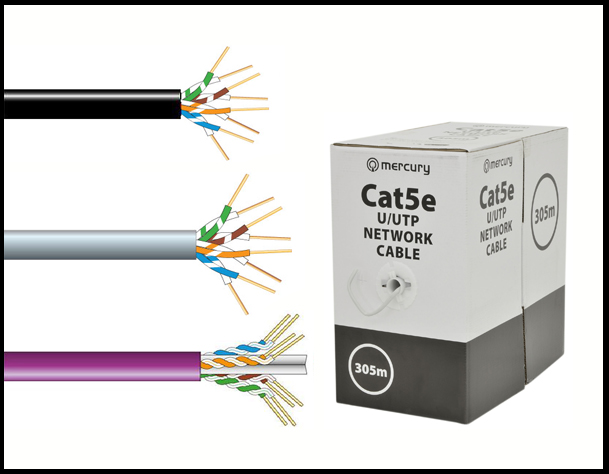

CAT5 & CAT6 Network Cable

Products

  • CAT5 UTP Low Smoke Zero Halogen Network Cable

    CAT5 UTP Low Smoke Zero Halogen Network Cable

    Cat5e U/UTP Low Smoke, Zero Halogen Network Cable in 305 metre dispenser

    Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.


    Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
    AWG 24 oxygen free solid copper conductor
    Supplied in an easy-pull dispensing box
    Passes Cat5e fluke test 100m at 100MHz
    Complies to TIA/EIA-568 Cat5e standard
    HDBaseT Compliant
    Specification
    Conductor Solid OFC
    Strands 8 x 1/0.
    Conductor CSA 8 x 0.196mm
    Cable : diameter 5mm
    Insulation HDPE 0.19mm thickness
    Sheath LSZH 0.5mm thickness
    Capacitance 4.9nF/100m
    DC resistance @ 20°C <9.5 ohms/100m
    Impedance (1 to 100MHz) 100±15 ohms
    Return loss >20dB @100m


    Item Number: CAT5Z
    £115.50 (inc VAT £138.60)

  • CAT5E 24AWG Copper Clad Aluminium Cable - 100m Dispensing Box

    CAT5E 24AWG Copper Clad Aluminium Cable - 100m Dispensing Box

    Good Quality Grey 4 pair UTP 24 AWG cable supplied in dispensing box with cable feed.

    CAT5e cable with copper clad alloy (CCA), therefore, reducing the cost significantly.

    Manufactured in accordance with ISO11801

     ROHS compliant 2002 95ECt.

    • 4 pair UTP

    • 24 AWG (CCA)

    • 382 ft 100m) reel

    • Manufactured to ISO11801

    • Built-in cable feed



    Item Number: CAT5CCH
    £24.00 (inc VAT £28.80)

  • CAT5E Pure Oxygen Free Copper Cable. Sold in 305 Metre Dispenser

    CAT5E Pure Oxygen Free Copper Cable. Sold in 305 Metre Dispenser

    CAT5E Pure Oxygen Free Copper U/UTP High Quality Data Network Cable

    Oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals.
    This cable is designed for high speed data transmission up to Gigabit Ethernet applications.
    AWG 24 oxygen free solid copper conductor
    Supplied in an easy-pull dispensing box
    Passes Cat5e fluke test 100m at 100MHz
    Complies to TIA/EIA 568 Cat5e standard
    Conductor: Solid OFC
    Strands: 8 x 1/0.5mm
    Cable diameter: 5mm
    Insulation: HDPE 0.19mm thickness
    Sheath: PVC 0.5mm thickness
    Capacitance: 4.9nF/100m
    DC resistance @ 20C: 16.7 Ohms/100m
    Impedance (1 to 100MHz)100 Ohms
    Return loss Less than 20dB @100m
    Attenuation Less than 22dB @100m
    NEXT: Greater than 35.3dB
    PSNEXT Greater than 32.3dB
    ELFEXT Greater than 23.8dB
    PSELFEXT: Greater than 20.8dB
    Phase delay: Less than 570ns
    Cable colour: Grey
    Length: 305m
    Weight: 8.6kg


    Item Number: UTP305CU
    £104.50 (inc VAT £125.40)

  • CAT6 Outdoor Pure Oxygen Free Copper Conductors in 1 metre marked 305 Metre Dispenser

    CAT6 Outdoor Pure Oxygen Free Copper Conductors in 1 metre marked 305 Metre Dispenser

    Cat6e U/UTP Outdoor Pure Oxygen  Free Copper OFC Network Cable

    Cat6 pure oxygen free copper (OFC) twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

    • Oxygen free solid copper conductor
    • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
    • Supplied in an easy-pull dispensing box and marked at 1m intervals
    • Passes Cat6 fluke test 100m at 250MHz
    • Complies to TIA/EIA-568 Cat6 standard


    Item Number: CAT6COD
    £135.00 (inc VAT £162.00)
    £165.00 , save 18%
  • CAT6 Outdoor Pure Oxygen Free Copper Conductors in 100 Metre Dispenser

    CAT6 Outdoor Pure Oxygen Free Copper Conductors in 100 Metre Dispenser

    Cat6e U/UTP Outdoor Pure Oxygen  Free Copper OFC Network Cable

    Cat6 pure oxygen free copper (OFC) twisted pair data cable with LDPE sheath, supplied in 100M dispensing box. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

    • Oxygen free solid copper conductor
    • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
    • Supplied in an easy-pull dispensing box and marked at 1m intervals
    • Passes Cat6 fluke test 100m at 250MHz
    • Complies to TIA/EIA-568 Cat6 standard


    Item Number: CAT6HB
    £74.00 (inc VAT £88.80)

  • CAT6 Oxygen-Free Copper Cable. Sold in 100 Metre Dispenser

    CAT6 Oxygen-Free Copper Cable. Sold in 100 Metre Dispenser

    CAT6 Oxygen-Free Copper (OFC) High Speed Twisted pair Data Cable

    Supplied in a 100m dispensing box. This cable is designed for high speed data transmission such as Gigabit Ethernet applications

    OFC Oxygen free solid copper conductor

    Supplied in an easy-pull dispensing box
    Passes Cat6 fluke test 100m at 250MHz

    Specification:
    ConductorSolid Oxygen Free Copper
    Strands 8 x 1/0.54mm
    Conductor CSA 8 x 0.229mm
    Cable diameter 5.8mm
    InsulationHDPE 0.195mm thickness
    SheathPVC 0.55mm thickness
    Capacitance 5.2nF/100m
    DC resistance @ 20°C less than 9.5 ohms/100m
    Impedance (1 to 250MHz)100 ohms
    Return loss>17.3dB @100m


    Item Number: CAT6H
    £63.50 (inc VAT £76.20)

  • CAT6 Oxygen-Free Copper Cable. Sold in 305 Metre Dispenser

    CAT6 Oxygen-Free Copper Cable. Sold in 305 Metre Dispenser

    CAT6 Oxygen-Free Copper (OFC) High Speed Twisted pair Data Cable

    Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications

    OFC Oxygen free solid copper conductor

    Supplied in an easy-pull dispensing box
    Passes Cat6 fluke test 100m at 250MHz

    Specification:
    ConductorSolid Oxygen Free Copper
    Strands 8 x 1/0.54mm
    Conductor CSA 8 x 0.229mm
    Cable diameter 5.8mm
    InsulationHDPE 0.195mm thickness
    SheathPVC 0.55mm thickness
    Capacitance 5.2nF/100m
    DC resistance @ 20°C less than 9.5 ohms/100m
    Impedance (1 to 250MHz)100 ohms
    Return loss>17.3dB @100m


    Item Number: CAT6CUX
    £125.00 (inc VAT £150.00)
    £140.00 , save 11%
  • CAT6 U/UTP Low Smoke Zero Halogen Network Cable

    CAT6 U/UTP Low Smoke Zero Halogen Network Cable

    CAT6 U/UTP LOW SMOKE, ZERO HALOGEN, OXYGEN-FREE COPPER NETWORK CABLE -  PER 305 METRE DISPENSER

    Very High Quality Copper
    This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
    Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire.


    Specs
    Oxygen free solid copper conductor
    Supplied in an easy-pull dispensing box
    Passes CAT6 fluke test 100m at 250MHz
    Complies to TIA/EIA-568 Cat6 standard
    Conductor Solid OFC
    Strands8 x 1/0.54mm
    Conductor CSA 8 x 0.229mm2
    Cable diameter 5.8mm
    InsulationHDPE 0.195mm thickness
    SheathLSHF 0.55mm thickness
    Capacitance 5.2nF/100m
    DC resistance @ 20 deg C Less than 9.5 ohms/100m
    Impedance (1 to 250MHz)100 Plus/Minus 15 ohms
    Return loss Less than 17.3dB @100m
    Attenuation Less than 32.8dB @100m
    Cable colour Mauve
    Length 305m
    Weight 12.7kg


    Item Number: CAT6LSZH
    £135.00 (inc VAT £162.00)
    £155.00 , save 13%
  • CAT6A S/FTP Low Smoke Zero Halogen Network Cable

    CAT6A S/FTP Low Smoke Zero Halogen Network Cable

    CAT6A S/FTP Low Smoke, Zero Halogen Oxygen Free Copper (OFC) Data Network Cable in 305m Reel

    Very High Quality Copper

    CAT6A oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
    Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire

    AWG 23 oxygen free solid copper conductor
    Supplied on a sturdy wooden drum reel
    Passes Cat6a fluke test 100m at 500MHz
    Complies to TIA/EIA-568 Cat6a standard


    Specs
    Conductor - Solid OFC
    Strands - 8 x 1/0.565mmØ ±2%
    Conductor CSA - 8 x 0.251mm²
    Cable diameter - 7.5mmØ
    Screen - Aluminium foil
    Insulation - PE 0.385mm thickness
    Sheath - LSZH 0.55mm thickness
    Capacitance - 6.6nF/100m
    DC resistance @ 20°C - <9.38 Ohms/100m
    Impedance (1 to 250MHz) - 100±15 Ohms
    Impedance (250 to 500MHz) - 100±22 Ohms
    Return loss - >25dB @100m
    Attenuation - <45.3dB @100m
    NEXT - >74.3dB
    PSNEXT - >72.3dB
    ELFEXT - >13.8dB
    PSELFEXT - >10.8dB
    Phase delay - <570ns
    Cable colour - Lilac
    Length - 305m
    Weight - 17.4kg



    Item Number: CAT6ASLH
    £200.00 (inc VAT £240.00)
    £215.00 , save 7%
  • CAT6A U/FTP Low Smoke Zero Halogen Network Cable

    CAT6A U/FTP Low Smoke Zero Halogen Network Cable

    CAT6A U/FTP Low Smoke, Zero Halogen Oxygen Free Copper (OFC) Data Network Cable in 305m Dispenser Box


    Very High Quality Copper

    CAT6A oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
    Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire

    AWG 23 oxygen free solid copper conductor
    Supplied on a sturdy wooden drum reel
    Passes Cat6a fluke test 100m at 500MHz
    Complies to TIA/EIA-568 Cat6a standard


    Specs
    Conductor - Solid OFC
    Strands - 8 x 1/0.565mmØ ±2%
    Conductor CSA - 8 x 0.251mm²
    Cable diameter - 7.5mmØ
    Screen - Aluminium foil
    Insulation - PE 0.385mm thickness
    Sheath - LSZH 0.55mm thickness
    Capacitance - 6.6nF/100m
    DC resistance @ 20°C - <7.8 Ohms/100m
    Impedance (1 to 250MHz) - 100±15 Ohms
    Impedance (250 to 500MHz) - 100±22 Ohms
    Return loss - >25dB @100m
    Attenuation - <45.3dB @100m
    NEXT - >74.3dB
    PSNEXT - >72.3dB
    ELFEXT - >14dB
    PSELFEXT - >11dB
    Phase delay - <570ns
    Cable colour - Lilac
    Length - 305m
    Weight - 14.5kg


    Item Number: CAT6ALH
    £190.00 (inc VAT £228.00)
    £215.00 , save 12%
  • Outdoor Solid Pure Oxygen Free Copper Conductors in 305 Metre Dispenser

    Outdoor Solid Pure Oxygen Free Copper Conductors in 305 Metre Dispenser

    Cat5e U/UTP Outdoor Pure Oxygen-Free Copper Network Cable

    Cat5e oxygen free copper twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

    • LDPE sheath with UV resistant properties & inner structure makes this cable ideal for outdoor installation
    • AWG 24 oxygen free solid copper conductor
    • Supplied in an easy-pull dispensing box


    Specification:

    Conductor                            Solid Oxygen Free Copper
    Strands                                8 x 1/0.5mm
    Conductor CSA                   8 x 0.196mm
    Cable diameter                    5.2mm
    Insulation                             HDPE 0.87mm thickness
    Sheath                                  LDPE 0.55mm thickness
    Capacitance                         4.9nF/100m
    DC resistance @ 20°C         <9.5 ohms/100m
    Impedance (1 to 100MHz)    100±15 ohms
    Return loss                          >20.1dB @100m
    Attenuation                           <22dB @100m
    NEXT                                    >35.3dB
    PSNEXT                               >32.3dB
    ELFEXT                                >23.8dB
    PSELFEXT                           >20.8dB
    Phase delay                         <536ns
    Cable colour                        Black
    Length                                  305m
    Weight                                  8.1kg



    • Passes Cat5e fluke test 100m at 100MHz
    • Complies to TIA/EIA-568 Cat5e standard


    Item Number: CAT5XTC
    £94.00 (inc VAT £112.80)
