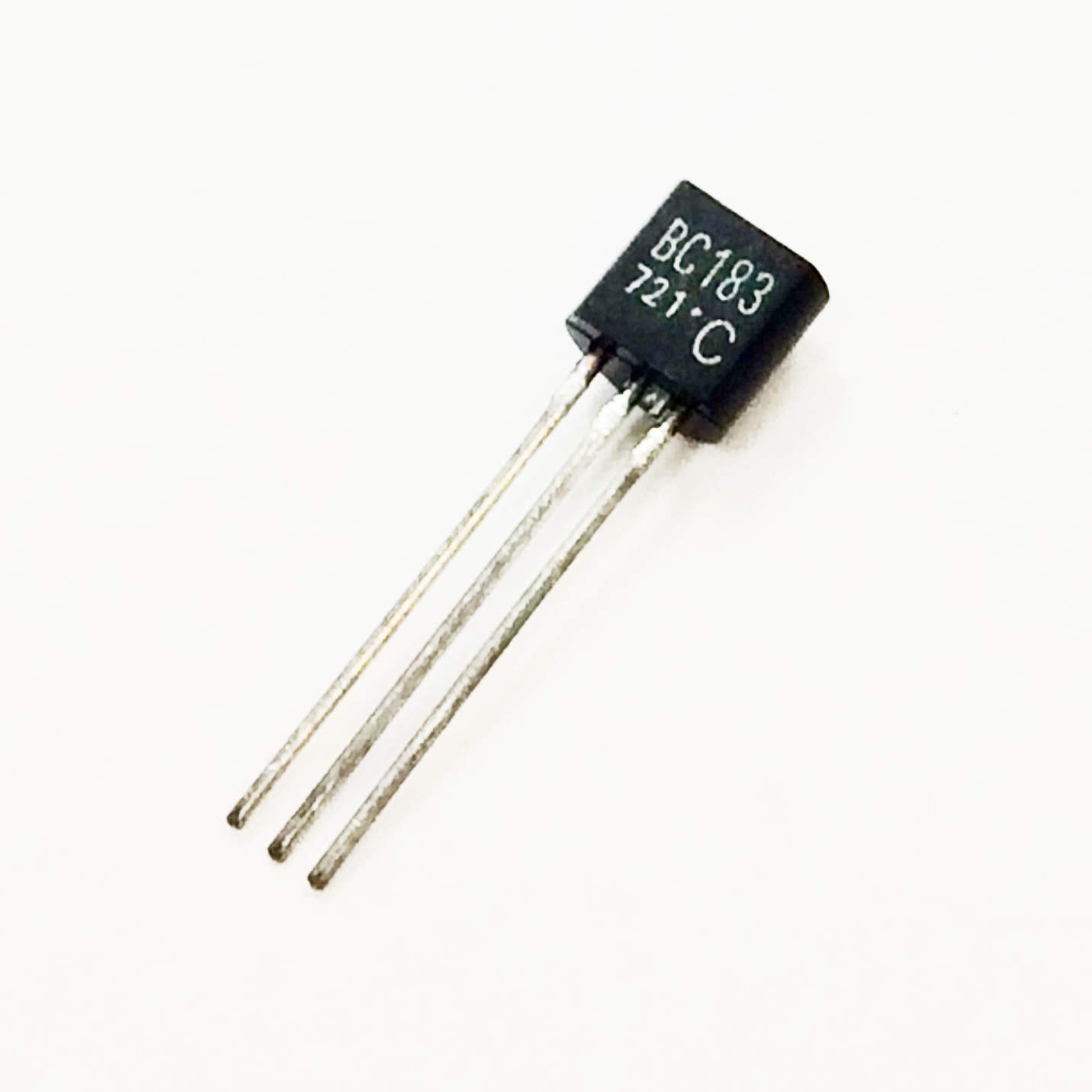

BC183C Transistor

Guitar Fuzz Effects Pedal Kit

This kit is based on the legendary fuzz face pedal. Instead of germanium transistors, it uses newer, more commonly available NPN silicon transistors to give you a harsh and sharp fuzz, while keeping the cost down. This project is ideal if you're looking to get into guitar pedal building.


The following components are included in this kit:

• Instructions  x 1
• Volume (500kΩ LIN) and fuzz (5kΩ LIN) potentiometers x 1 each
• BC108 and BC183 Transistors x 1 each
• 10nf Dipped Polyester Capacitor x 1
• 2.2µF Electrolytic Capacitor x 1
• 22µF Electrolytic Capacitor x 1
• 470Ω Metal Film Resistor x 1
• 33kΩ Metal Film Resistor x 1
• 100kΩ Metal Film Resistor x 1
• 2.2kΩ Metal Film Resistor x 1
• 6.3mm (1/4") Open Jack Socket x 2
• PP3 9V Battery Snap x 1
• 3PDT Latching Footswitch x 1
• PCB x 1

To assemble this kit, you will need the following tools:

• Soldering iron and solder
• Side cutters
• Track cutter
• Drill (optional - only needed if you want to drill an enclosure)
