18 Channel 20 Amp 12V CCTV Metal Lockable Cabinet Power


Details


Item Number
PUD1820
Weight
2.00 Kg
Item Condition
New
Price
£73.50 (inc VAT £88.20)


Description

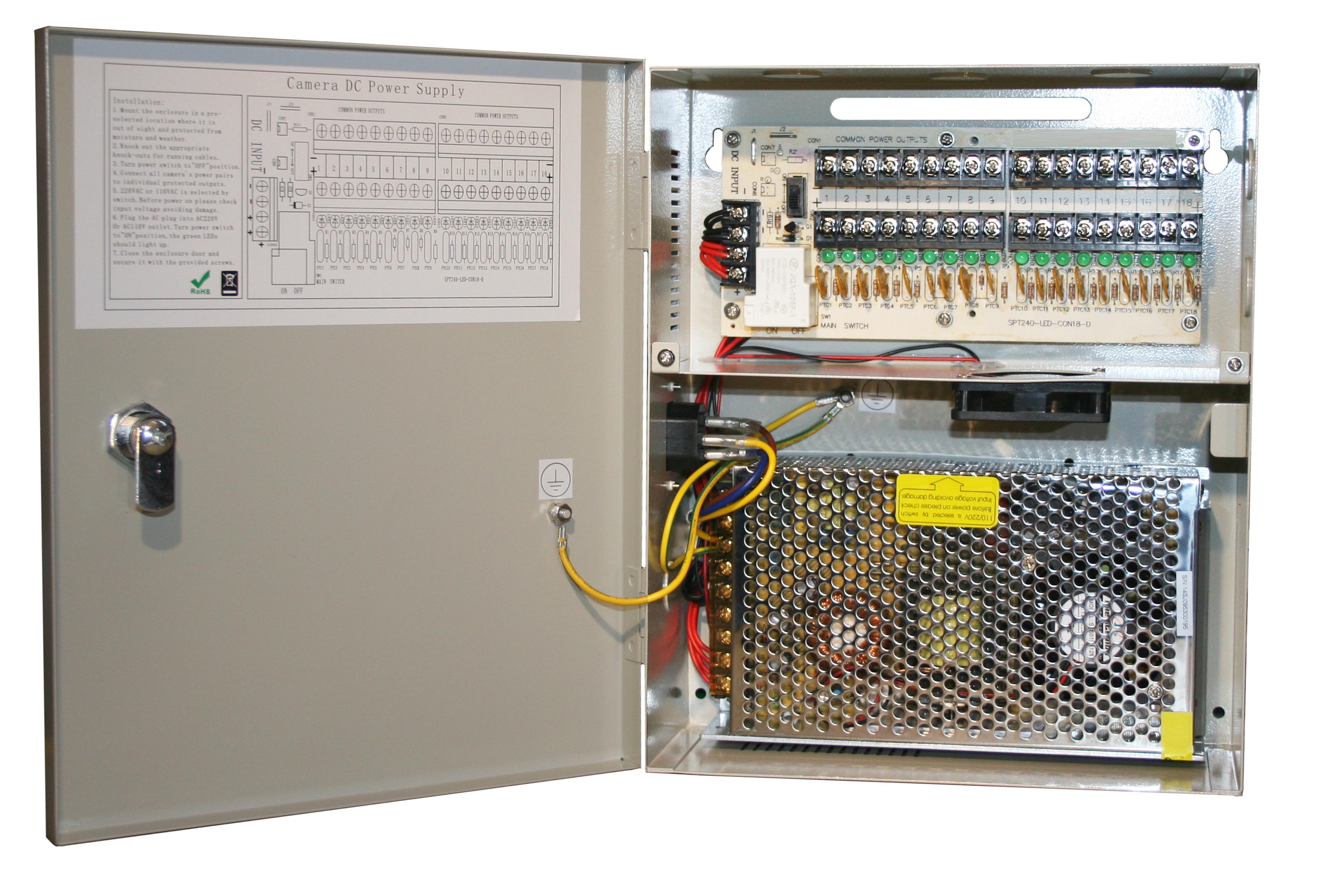

High Power 12Volt DC 20Amp Lockable-Cabinet CCTV Power Supply with 18 WAY Distribution Screw Terminals

with resettable 18 PTC fuses.  Housed in a heavy-duty, secure, steel housing with key.

12VDC 20 Amps. Can supply up to 1.4A per channel (providing 20 Amps max overall is not exceeded).

Univerasl input power of 100-240VAC.

Supplied with IEC socket & Lead. Can also be hard-wired via the knock-out holes.

 Dimensions: 315 x 220 x 80mm



Features:

Independent PTC fuses and LED indicators insure that when a problem occurs, only affected channel will open the PTC fuse - other channels will still work. Removal of the fault will allow current to flow again.

Applications: CCTV Cameras,  PTZ,  IR Illuminators,  Video Processors, Access Control,  etc.
