16 Channel 5MP H265 DVR With Advanced Facial Recognition and Easy Mobile Viewing


Item Number
3.00 Kg
Item Condition
£199.00 (inc VAT £238.80)

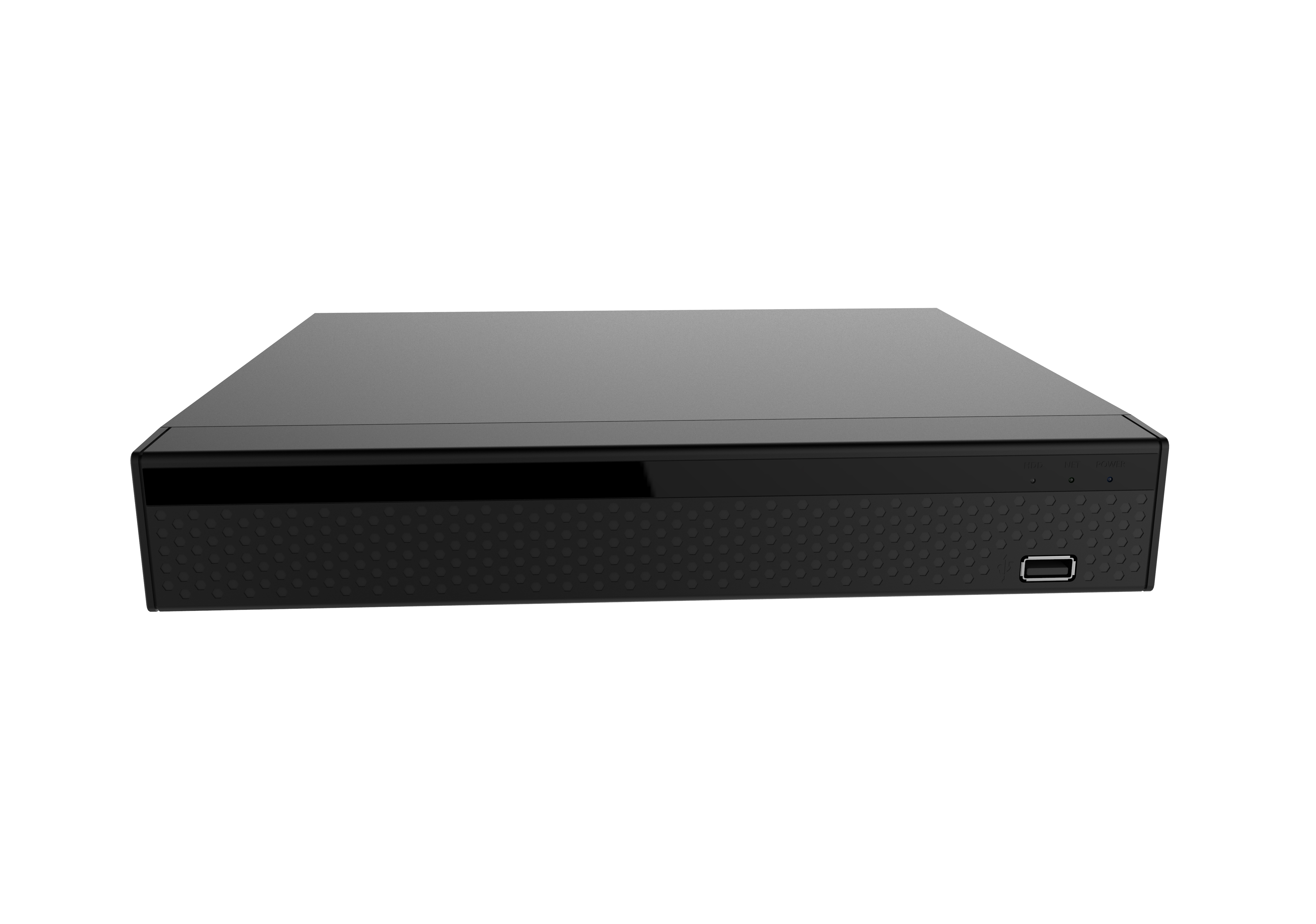

Drake ACE16T 5in1 5MP 16 Channel H265  DVR with Advanced Facial Recognition and Audio on 6 Channels

Records at up to 5MP on every channel.

Autodetects the camera resolutions and format.

Excellent Cloud functions including Mobile viewing. Advanced facial recognition and human body activated motion detection.

Push notifications, Cloud Share and Cloud Backup.

Self networking with simple to setup, fully functioning mobile App.

Powerful PC/Mac monitoring software.

H265 compression means recording almost twice as much compared to H264 on the same size hard drive.

Complete with mouse for simple navigation of the user friendly on screen menu.


*  Easy Web & Mobile Set up
*  Cloud Backup
*  6 Audio inputs
*  Strong processing capacity with H265
*  Easy Smartphone viewing
*  Windows and Mac software
*  Dual stream encoding ensures high quality recording on the streaming all broadband speeds using the extra stream.
*  Composite Video output
*  Push Notifications
*  Simple backup via USB stick, external HDD or via network / Internet
*  Auto power recovery, returning to the pre-power-down state
*  Complete with Mouse

Price includes 1TB Hard Drive. Upgradeable to 16TB

Technical Data:
Channel modes: Single & Multi Camera Displays
TV System: PAL
Image encoding: H.265
Playback Quality: 8 cameras at 5M
AHD, CVI or TVI mode: 8 Cameras at 5MP, 4MP, 3MP, 2MP, 1MP or 960H
Video Motion Detection: Each channel can be set to 192 multiple detection areas.
Video input: 16 BNC sockets
Video output: 1 VGA, 1 HDMI & BNC (note: BNC output is not HD)
Audio input: 6 Phono (RCA) Sockets
Audio output: 1 Phono (RCA) & HDMI
Tour: Yes
Power Supply: 12V 4A Included
Dimension: 310mm(W) x 297mm(D) x 47mm(H)

Approximate Hard Drive Times

16 cameras at 5MP 12fps

1TB:             3 Days
2TB:             7 Days
4TB:             14 Days
6TB:             21 Days
8TB:             28 Days
12TB            42 Days
16TB            56 Days
