16 Channel 5MP H265 DVR With Advanced Facial Recognition and Easy Mobile Viewing

  • Details

  • Recommended

  • Send


Item Number
3.00 Kg
Item Condition
£199.00 (inc VAT £238.80)


Hard Drive Size

  • BNC Coupler - Joins 2 BNC Plugs

    BNC Coupler - Joins 2 BNC Plugs

    BNC Coupler 2 Females (to join 2 BNC plugs)

  • BNC Male to Male Coupler

    BNC Male to Male Coupler

    BNC Male to Male Coupler. Joins 2 Females

  • CCTV Microphone & Pre-amplifier  Module

    CCTV Microphone & Pre-amplifier Module

    Add-on CCTV Microphone & Pre-amplifier Module

    Ready to plug into an amplifying device or DVR. Needs 12VDC supply. Very sensitive. Omni-directional Electret Microphone. This Very Sensitive Module, can be used as an addition to any of our cameras.

    *  Power 12VDC @ 50mA Via 2.1 x 5.5mm DC Socket
    *  Audio line out Via Phono Socket (RCA)
    *  Dimensions: 8x30mm (not including lead) Length including lead 450mm

  • BNC Female to RCA Male Adaptor

    BNC Female to RCA Male Adaptor

    Adaptor: BNC Socket (Female) to Phono (RCA) Plug

  • Splitter Lead 2.1 x 5.5mm DC Socket to 4 x DC Plugs

    Splitter Lead 2.1 x 5.5mm DC Socket to 4 x DC Plugs

    4 Way DC Power Splitter Lead. 2.1 X 5.5mm Socket to 4 DC 2.1 X 5.5mm Plugs.

    For splitting low voltage from one power source to 4 units, ie CCTV cameras.

  • 2.1 x 5.5mm DC Line Plug with Screw Terminal Block

    2.1 x 5.5mm DC Line Plug with Screw Terminal Block

    DC Line Plug 2.1 x 5.5mm with 2 way screw terminal block connection Marked + and -

  • 12V DC 2A Adaptor Power Supply

    12V DC 2A Adaptor Power Supply

    High Quality Switchmode Regulated Desktop Plug In) Power Supply. 12VDC (Single Voltage) 2A

    5.5 x 2.1mm (Centre Positive) plug on the output.

    Many Uses. Great for most CCTV System for Cameras up to a total of 2 Amps

  • 75 ohm Compression BNC Plug for RG59 6mm Cable

    75 ohm Compression BNC Plug for RG59 6mm Cable

    BNC Compression Fit Plug

    For use with RG59, etc 6mm 75 ohm cable (CCTV shotgun cable).

    Ensures quick and very secure waterproof seal to the cable.

    Simply strip the cable back, push on the plug and compress, using the compression tool.


    Compression Tool

     Compression Tool

  • Ultra HD 5 Megapixel Grey HD Eyeball Dome Camera 20M Night Vision 3 in 1

    Ultra HD 5 Megapixel Grey HD Eyeball Dome Camera 20M Night Vision 3 in 1

    5MP Ultra High Definition Grey Eyeball Dome Camera 20M Night Vision

    Superb quality image with true colours and fine definition.

    • For outdoors or indoors (Robust Metal Fully Weatherproof Housing)
    • Wide-angle 3.6mm megapixel lens.
    • Easy to mount in any direction.

    Also compatible with older 4MP & 2MP HD DVRs  Please phone 020 8452 0161 if you need this adjustment


    Image Sensor: 1/2.5" CMOS Sensor
    Resolution: 5.0 Megapixel, 2592 x1944
    Lux: 0.05 IR off, 0 IR on
    Lens: Fixed 3.6mm with IR Cut Filter

    • Digital Wide Dynamic Range
    • Digital Noise Reduction
    • Auto White Balance
    • AGC
    • Anti-Fog Dual Glass

    Power Reqd: 12VDC 550mA
    Infra-red Source: 18pcs x 14µ SMD IR LEDs
    Infra Red Beam: 20 Metres
    Terminations: BNC & DC 2.1 x 5.5mm on Flying Leads
    Size: D93 X H74mm


Send to Friend

: *
: *
: *
Type the characters you see in the picture:

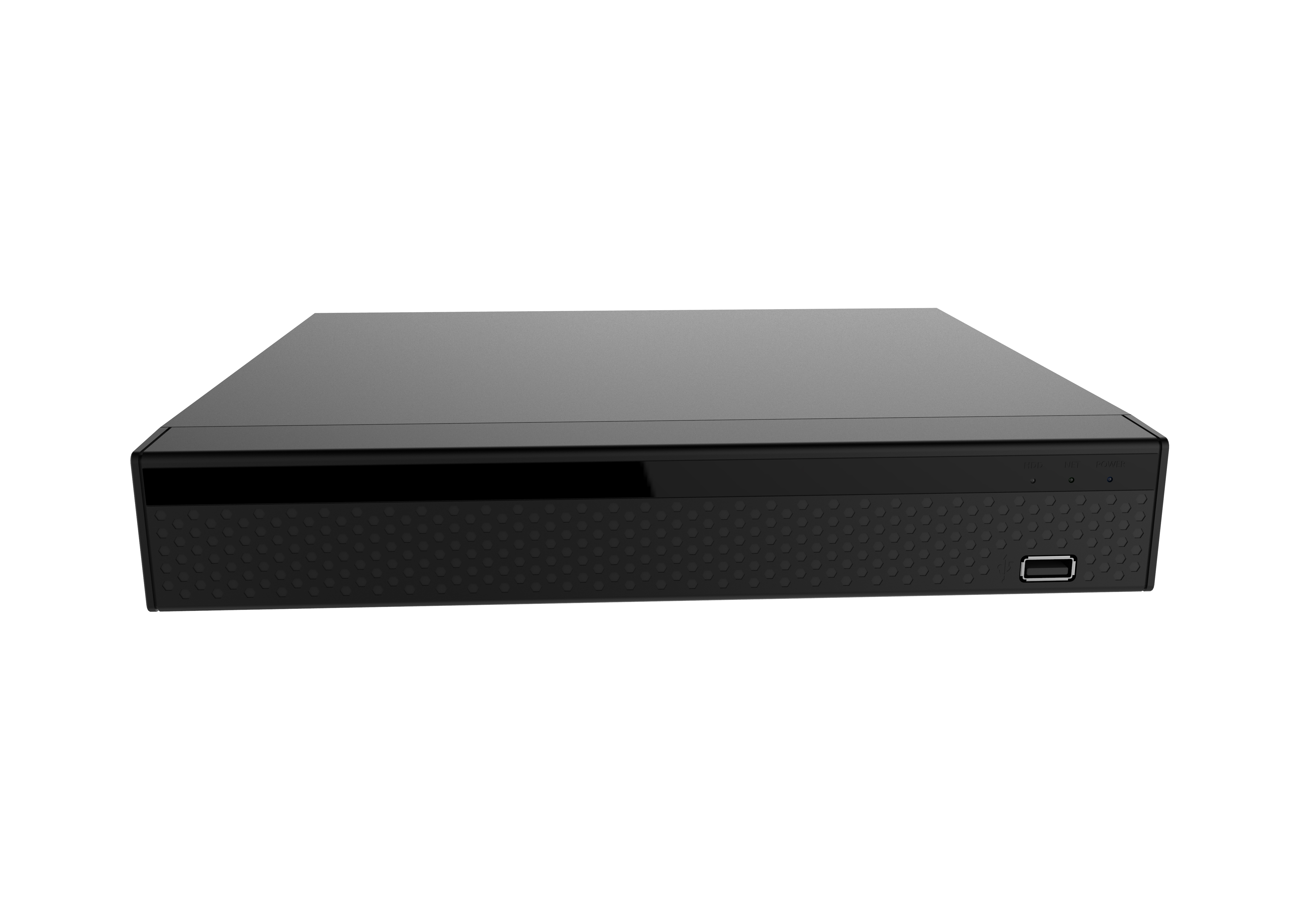

Drake ACE16T 5in1 5MP 16 Channel H265  DVR with Advanced Facial Recognition and Audio on 6 Channels

Records at up to 5MP on every channel.

Autodetects the camera resolutions and format.

Excellent Cloud functions including Mobile viewing. Advanced facial recognition and human body activated motion detection.

Push notifications, Cloud Share and Cloud Backup.

Self networking with simple to setup, fully functioning mobile App.

Powerful PC/Mac monitoring software.

H265 compression means recording almost twice as much compared to H264 on the same size hard drive.

Complete with mouse for simple navigation of the user friendly on screen menu.


*  Easy Web & Mobile Set up
*  Cloud Backup
*  6 Audio inputs
*  Strong processing capacity with H265
*  Easy Smartphone viewing
*  Windows and Mac software
*  Dual stream encoding ensures high quality recording on the streaming all broadband speeds using the extra stream.
*  Composite Video output
*  Push Notifications
*  Simple backup via USB stick, external HDD or via network / Internet
*  Auto power recovery, returning to the pre-power-down state
*  Complete with Mouse

Price includes 1TB Hard Drive. Upgradeable to 16TB

Technical Data:
Channel modes: Single & Multi Camera Displays
TV System: PAL
Image encoding: H.265
Playback Quality: 8 cameras at 5M
AHD, CVI or TVI mode: 8 Cameras at 5MP, 4MP, 3MP, 2MP, 1MP or 960H
Video Motion Detection: Each channel can be set to 192 multiple detection areas.
Video input: 16 BNC sockets
Video output: 1 VGA, 1 HDMI & BNC (note: BNC output is not HD)
Audio input: 6 Phono (RCA) Sockets
Audio output: 1 Phono (RCA) & HDMI
Tour: Yes
Power Supply: 12V 4A Included
Dimension: 310mm(W) x 297mm(D) x 47mm(H)

Approximate Hard Drive Times

16 cameras at 5MP 12fps

1TB:             3 Days
2TB:             7 Days
4TB:             14 Days
6TB:             21 Days
8TB:             28 Days
12TB            42 Days
16TB            56 Days
